ANALOG PRESSURE SENSORS

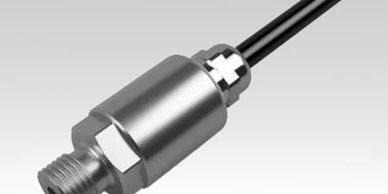

Titan TPT Pressure Transducer
Titan TPTa Pressure Transmitter – Analogue
Titan TPTLR Low Range Pressure Transducer
.webp/:/rs=w:388,h:194,cg:true,m/cr=w:388,h:194)
- Pressure Ranges: From 0.5 up to 600 bar.
- Output Signal: Passive millivolt output.
- Accuracy: <±0.35% / <±0.25% / <±0.10%.
- Electrical Connections: High resistance, low power consumption.
- Process Connections: Choice of mechanical connections.
- Media Compatibility: Ceramic sensor with high corrosion resistance.
- Special Features: Naturally high frequency response from 1 kHz up to 75 kHz, cost-effective for OEM solutions.
Titan TPTLR Low Range Pressure Transducer
Titan TPTa Pressure Transmitter – Analogue
Titan TPTLR Low Range Pressure Transducer
- Pressure Ranges: From 50 mbar up to 20 Bar.
- Output Signal: Passive millivolt output.
- Accuracy: <±0.25% / <±0.10%.
- Electrical Connections: Characterised by low power consumption.
- Process Connections: Choice of mechanical connections.
- Media Compatibility: Responsive stainless steel sensor.
- Special Features: Naturally high frequency response, cost-effective for OEM solutions.
Titan TPTa Pressure Transmitter – Analogue
Titan TPTa Pressure Transmitter – Analogue
Titan TPTa Pressure Transmitter – Analogue
- Pressure Ranges: Ranges from 0.5 up to 600 bar
- Output Signal: Various analogue output versions
- Accuracy: <±0.35% / <±0.25% / <±0.10%
- Electrical Connections: High level of temperature compensation
- Process Connections: Choice of mechanical connections
- Media Compatibility: Ceramic sensor, high corrosion resistance
- Special Features: Cost-effective for Industrial and OEM solutions.
.
Titan TPTLRa Low Range Pressure Transducer – Analogue
Titan TPTLRa Low Range Pressure Transducer – Analogue
Titan TPTLRa Low Range Pressure Transducer – Analogue
- Pressure Ranges: From 50 mbar up to 20 Bar.
- Output Signal: Various analogue output versions.
- Accuracy: <±0.25% / <±0.10%.
- Electrical Connections: Features high level of temperature compensation.
- Process Connections: Offers a choice of mechanical connections.
- Media Compatibility: Responsive stainless steel sensor.
- Special Features: Cost-effective for industrial and OEM solutions.
SCPS – Custom Pressure Sensor
Titan TPTLRa Low Range Pressure Transducer – Analogue
Titan TPTLRa Low Range Pressure Transducer – Analogue
- Pressure ranges from 0.5 up to 100 bar
- Accuracy <±0.35% / <±0.25% / <±0.10%
- Ceramic sensor, high corrosion resistance
- Passive millivolt output, analogue or digital
- High resistance, low power consumption
- Naturally high frequency response from 1kHz up to 75kHz
- Choice of mechanical connections
- Cost effective for OEM solutions
DMP 331 Industrial Pressure Transmitter
Titan TPTLRa Low Range Pressure Transducer – Analogue
DMP 331 Industrial Pressure Transmitter
- Pressure Ranges: From 0 … 100 mbar to 0 … 60 bar.
- Output Signal: 2-wire: 4 … 20 mA; 3-wire: 0 … 20 mA / 0 … 10 V; additional options.
- Accuracy: Features perfect thermal behavior and excellent long-term stability.
- Electrical Connections: Multiple options, including 2-wire and 3-wire systems.
- Process Connections: G 1/2″ flush pressure port available from 100 mbar.
- Media Compatibility: Suitable for various industrial applications.
- Special Features: Intrinsically safe IS-version Ex ia; SIL 2 compliant; welded pressure sensor; customizable versions.
DMP 339 Industrial Pressure Transmitter
DMP 339 Industrial Pressure Transmitter
DMP 331 Industrial Pressure Transmitter
- Pressure Ranges: From 0 … 60 bar to 0 … 600 bar.
- Output Signal: 2-wire: 4 … 20 mA; 3-wire: 0 … 20 mA / 0 … 10 V; additional options available.
- Accuracy: Designed for precision in industrial applications.
- Electrical Connections: Multiple options, including various customer-specific configurations.
- Process Connections: Mechanical connection G 1/4″ flush, ideal for viscous and pasty media.
- Media Compatibility: Suitable for a wide range of industrial media.
- Special Features: Intrinsically safe IS-version Ex ia for gases and dusts; customisable to specific needs.
DMP 343 Industrial Pressure Transmitter
DMP 339 Industrial Pressure Transmitter
DMP 343 Industrial Pressure Transmitter
- Pressure Ranges: From 0 … 10 mbar to 0 … 1000 mbar.
- Output Signal: Various options tailored to customer-specific requirements.
- Accuracy: Excellent linearity, minimal thermal effect, and superior long-term stability.
- Electrical Connections: Multiple options including custom electrical connections.
- Process Connections: Diverse mechanical connections for different applications.
- Media Compatibility: Suitable for a variety of gases and dusts.
- Special Features: Intrinsically safe IS-version Ex ia; customisable to specific needs.
DMP 321 Industrial Pressure Transmitter
DMP 339 Industrial Pressure Transmitter
DMP 343 Industrial Pressure Transmitter
- Pressure Ranges: From 0 … 100 mbar to 0 … 600 bar.
- Output Signal: 2-wire: 4 … 20 mA; 3-wire: 0 … 20 mA / 0 … 10 V; more options available.
- Accuracy: Perfect thermal behavior and excellent long-term stability.
- Electrical Connections: Various options, including 2-wire and 3-wire systems.
- Process Connections: Compact design for versatile use.
- Media Compatibility: Suitable for a wide range of applications.
- Special Features: Intrinsically safe IS-version Ex ia for gases and dusts; welded sensor; customisable versions.
