Temperature Probes
RTD Pt100 Temperature Sensor, IP68 KNE Terminal Head, with or without a 4-20mA Transmitter
RTD Pt100 Temperature Sensor, IP68 KNE Terminal Head, with or without a 4-20mA Transmitter
RTD Pt100 Temperature Sensor, IP68 KNE Terminal Head, with or without a 4-20mA Transmitter
The industrial RTD temperature sensor with KNE head with a 4-20mA output transmitter. The Pt100 probe has a wide temperature range of -75 to +250°C and is suitable for measuring the temperature of liquids and gases.
Technical Details
- Sensor Type: Platinum Resistance Thermometer – Pt100 or Pt1000
- Plain Stem Probe below Terminal Head
- Heads available in Aluminium, Stainless Steel, Nylon or ABS
- Up to IP68 environmental protection
- Choice of Head Fittings – Block, Transmitter or Tails
- Battery powered or loop powered displays
- Ideal for Sliding Compression Fittings or Pockets
- Operating Range: -50 to +250°C
- Sheath Material: 316 stainless steel
- Custom Built to Suit Your Application
- Tolerance Band: Class B, Class A, 1/3 DIN, 1/5 DIN or 1/10 DIN
- Wiring System: 2, 3 or 4 wire, Simplex or Duplex

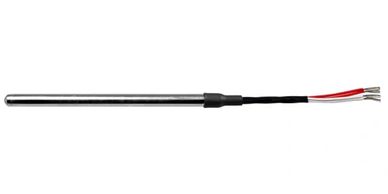

Plain stem RTD probe temperature sensor
RTD Pt100 Temperature Sensor, IP68 KNE Terminal Head, with or without a 4-20mA Transmitter
RTD Pt100 Temperature Sensor, IP68 KNE Terminal Head, with or without a 4-20mA Transmitter
Our plain stem RTD probe temperature sensor with PTFE flying lead is an excellent platinum resistance thermometer for general-purpose industrial or OEM applications.
Technical Details
- Sensor RTD Probe with Flying Lead
- General Purpose Industrial and OEM Applications
- Ideal for use with Compression Fittings or Pockets
- Standard Choice of Wiring, Detectors, Sheath Sizes & Lead Types
- Sensor Type: Platinum Resistance Thermometer – Pt100 or Pt1000
- 3 wire measuring system
- 316 stainless steel TIG welded protection sheath 3mm or 6mm diameter
- 2 metres PFA (Teflon) screened cable terminated in tails
- Suitable for use in the range -50 to +250°C
- Tolerance Band: Class B, Class A, 1/3 DIN, 1/5 DIN or 1/10 DIN
- Manufactured in the UK to Your Requirements
- UKAS or Traceable Calibration Available.

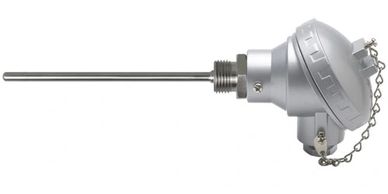

Mineral Insulated Thermocouple with Terminal Head
RTD Pt100 Temperature Sensor, IP68 KNE Terminal Head, with or without a 4-20mA Transmitter
Mineral Insulated Thermocouple with Terminal Head
he custom made general purpose mineral insulated thermocouple probe with terminal head is suitable for demanding applications, with high operating temperatures and flexible sensor options.
Technical Details
- Mineral Insulated Thermometer with Terminal Head
- Operating Temperatures of up to 1250°C
- Suitable for a Wide Variety of Demanding Applications
- Semi-Flexible Sensor available to Almost Any Length
- Choice of Terminal Head Fittings
- Sensor Type: Type J, K, T or N thermocouple
- Tolerance Band: BS EN 60584-2:1993 Class 1 or Class 2
- Wiring System: Simplex or Duplex
