Marine Approved Transmitters

These pressure sensors are designed to withstand high pressures, corrosion, and water infiltration since they operate underwater. Pressure vary from 0-15 psi through to 0-10,000 psi.
They typically use a pressure sensor to detect the ambient water pressure. This data is converted to an analogue or digital signal and transmitted electrically to monitoring equipment on the surface or internally to the ROV or diver.
Communication is done via electrical cables. Electrical signals allow real-time monitoring or alternatively combine data recorders on the device to log pressure over time.
Key components include the pressure sensor, signal conditioning circuitry, communication hardware, watertight housing/cabling, mounting equipment, and power source (battery or cable power).
Applications include oil and gas subsea pipelines and equipment, underwater research, oceanographic studies, and offshore systems that require long-term pressure monitoring underwater.

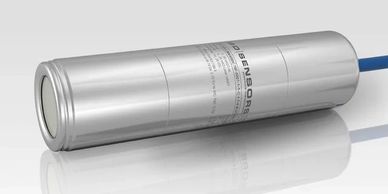

Pressure Ranges: 0 … 1 mH2O to 0 … 100 mH2O.
Output Signal: 2-wire: 4 … 20 mA, others available.
Accuracy: High long-term stability.
Electrical Connections: Optional temperature element Pt 100.
Process Connections: Diverse elastomer options.
Media Compatibility: Diaphragm 99.9% Al2O3.
Special Features: 22mm diameter, LR-certificate, DNV▪GL Approval, titanium housing, IS-version Ex ia.

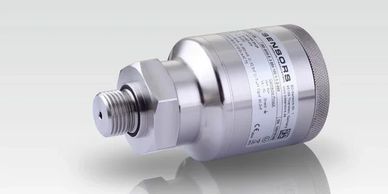

Pressure Ranges: From 0 … 100 mbar to 0 … 600 bar.
Output Signal: 2-wire: 4 … 20 mA; other options available.
Accuracy: Features excellent thermal behavior for precise measurements.
Electrical Connections: Includes options for various electrical requirements.
Process Connections: Flush pressure port G 1/2″ from 100 mbar.
Media Compatibility: Suitable for a wide range of applications.
Special Features: LR, DNV, ABS, CCS certifications; IS-version Ex ia for gas and dust safety; welded pressure port.

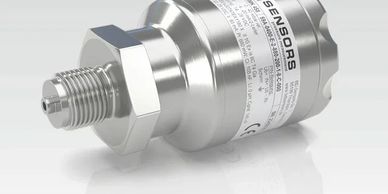

Pressure Ranges: From 0 … 40 mbar to 0 … 20 bar.
Output Signal: 2-wire: 4 … 20 mA; additional options available.
Accuracy: High overpressure resistance and excellent long-term stability.
Electrical Connections: Various options including 2-wire configurations.
Process Connections: Pressure port available in CuNiFe for sea water resistance.
Media Compatibility: Diaphragm made of AI2O3 99.9%.
Special Features: LR, DNV, ABS, CCS certifications; intrinsically safe IS-version Ex ia for gases.

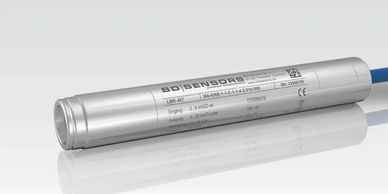

Pressure Ranges: 0 … 60 cmH2O to 0 … 200 mH2O.
Output Signal: 2-wire: 4 … 20 mA, more on request.
Accuracy: High overpressure resistance, long-term stability.
Electrical Connections: HART® communication for settings adjustment.
Process Connections: Screw-in and flange versions available.
Media Compatibility: Diaphragm Al2O3 99.9%.
Special Features: 39.5mm diameter, shipping approvals (LR, DNV, CCS, ABS), optional IS-version Ex ia.
