Wireless Pressure Transmitters
IWPT Wireless Pressure Transmitter
IWR-1 Single Channel Wireless Receiver
IWR-1 Single Channel Wireless Receiver
- Pressure ranges from -1 to +400 bar gauge
- Up to 500 m line-of-site range (depending on the receiver)
- Piezo-resistive thick film ceramic sensor with
- Stainless steel body
- Five-year battery life at 10-second transmission update rate
- Simple DIL switch pairing with the single or five-channel receiver
- Single, five and multi-channel channel receivers available (up to 128)
- User-selectable transmission update rates
- Analog, digital, RS-232/485, Ethernet & USB receiver outputs
- Receiver clean contacts provide process alarm functions
- Suitable for liquids and gases
IWR-1 Single Channel Wireless Receiver
IWR-1 Single Channel Wireless Receiver
IWR-1 Single Channel Wireless Receiver
Features
- Pairs with the IWPT & IWTT wireless pressure & temperature transducers
- User-selectable 1-5V or 4-20 mA receiver output
- Clean contact output for process, low battery or loss of signal alarm function
- Simple DIL switch pairing with the IWPT & IWTT transmitters
- Up to 500 m range, line-of-sight
- 12 to 32 V dc powered
- End-to-end accuracy of ±0.25% FS BFSL
- LED indication of the wireless link
- DIN rail or wall mounting kits available
- Five channel receivers available – see data sheet IWR-5
IWR-5 Five Channel Wireless Reciever
IWR-5 Five Channel Wireless Reciever
IWR-5 Five Channel Wireless Reciever
Features
- Pairs with the IWPT & IWTT wireless pressure & temperature transducers
- User-selectable 1-5V or 4-20mA receiver output
- Clean contact output for process, low battery or
loss of signal alarm function - Simple software or DIL switch pairing with IWPT/U & IWTT/U transmitters
- Up to 750m range, line-of-sight
- 12 to 32 Vdc powered
- End-to-end accuracy of ±0.25% FS BFSL
- LED indication of wireless link
- DIN rail or wall mounting kits available
- Single channel receiver available – see data sheet IWR-1

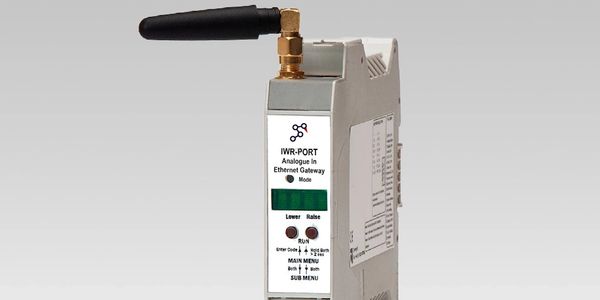

IWR-PORT Ethernet Gateway
IWR-5 Five Channel Wireless Reciever
IWR-5 Five Channel Wireless Reciever
Features
- 2.4GHz Wireless to Comms Gateway
- Enables easy add-on of wireless networks to existing Ethernet or RS-232/485 systems
- Allows remote sensors to be incorporated into an Ethernet or RS-232/485 network without the need for expensive cabling
- Optional analogue & digital outputs can be obtained using SC-ISOSLICE modules
