Temperature Transmitters

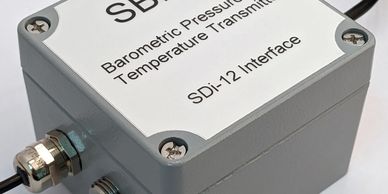

 Introducing the SBPT, your advanced, dual-functional solution for accurate measurement of barometric pressure and ambient temperature. Encased in a robust aluminium die-cast housing, this superior sensor system effectively combines a barometric pressure transmitter and a temperature sensor for the ultimate in precision and convenience.

• Output Signal: Wet-mateable electrical connectors with depth ratings to 4000m.
• Accuracy: <±0.5°C / <±0.25°C.
• Electrical Connections: Wet-mateable connectors, suitable for depths up to 4000m.
• Process Connections: Choice of mechanical connections.
• Media Compatibility: High corrosion resistance; various choices of wetted materials.
• Special Features: Options for calibrated temperature range; optional protruding probe with various lengths.

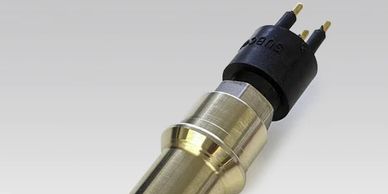

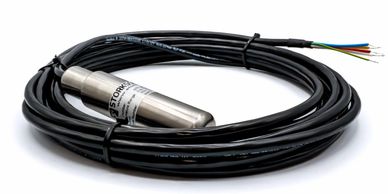

The STT-26 Submersible temperature transmitter has been designed to be permanently submersed in liquids and suspended by its cable making installation very simple.

The housing is available in either stainless steel or marine bronze to ensure complete compatibility with the media such as water, oils, waste water or seawater.

The temperature measuring element is a PT100 resistance thermometer and is secured in place with aluminium oxide and solid epoxy potting on the body of the sensor to ensure the quickest response time to temperature change. This is paired with accurate amplifier electronics to produce a 4-20mA output scale over your desired temperature
range.

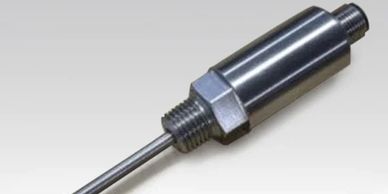

 Elevate temperature sensing with the Titan TTT Series Temperature Transmitters. Built with industry-standard PT100 & PT1000 sensors encased in durable stainless steel housing, these transmitters ensure accurate outputs – analogue (TTTa) or digital (TTTd), tailored to your application’s temperature range. IP67* protected cable outlet or M12 x 1, 4-Pin connector options, compatible with various connectors, offer flexibility. Customise probe length, process connection, and output – PT100/PT1000 resistance, 4-20mA / 2-wire, 0-5V/0-10V / 3-wire, 0.5-4.5V ratiometric output, or digital interfaces (i2c, SPI). The TTT Series suits diverse applications, guaranteeing precise temperature measurement.

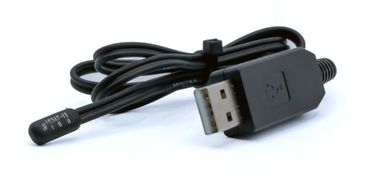

The USB Temperature Sensor, also known as the UTS-GP USB Thermometer, is a remarkable device that offers a simple and accurate solution for visualizing, logging, and monitoring temperature. With its fast logging rate of 100ms, this USB sensor is ideal for both engineering projects and end-users seeking real-time temperature data.

Implementing the USB temperature sensor into existing systems is made easy, thanks to the provided implementation support and command sets. The device features the high-quality Semitec AT-11 probe, ensuring reliable and precise temperature measurements.

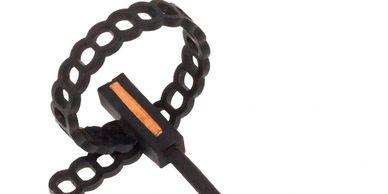

Introducing the RSM1P, your go-to RS485 Modbus pipe-mounted temperature sensor. Primarily designed for Thermistor integration, this device seamlessly transforms the exponential characteristics of thermistors into a user-friendly Modbus protocol. Temperature retrieval is a breeze through Modbus commands.

Beyond its core function, the RSM1P module can incorporate an in-built Humidity and temperature sensor, providing a comprehensive solution. Temperature data is efficiently obtained via RS485 Modbus RTU, offering the added flexibility to set the device ID and utilize 8 memory locations for storing user data. For your convenience, Modbus command examples are readily available.

Housed in a compact case ideal for pipe mounting, the RSM1P comes equipped with a dedicated pipe-mounted clip, making it effortless to monitor pipe temperatures. Embrace customization options available upon request, tailoring the RSM1P to suit your specific needs. Upgrade your temperature sensing capabilities with the versatility of the RSM1P.
