Analogue pressure gauge

 Specification:

• Diameter: 100 & 160mm
• Ranges: from -1 bar (-30″Hg) vacuum to 1000 bar (15000 psi) pressure
• Accuracy: ±1.0% FSD
• Connection: Bottom or Lower Rear – 1/4″, 3/8″ & 1/2″ BSP or NPT
• Mounting Options: Direct
• Case Filling: Dry
• Case Material: 304 Stainless Steel
• Thread Material: Brass
• Window: Instrument Glass
• Process Temperature: 60°C Max
• Weather Protection: IP 54

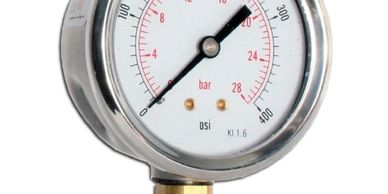

 Specification:

• Diameter: 40, 50, 63, 80, 100, 160 & 250mm
• Ranges: from -1 bar (-30″Hg) vacuum to 1000 bar (15000 psi) pressure
• Accuracy: ±1.0%, ±1.6% & ±2.5% FSD (subject to diameter)
• Connection: Bottom or Rear – 1/8″, 1/4″, 3/8″ & 1/2″ BSP, BSPT or NPT
• Mounting Options: Direct
• Case Filling: Glycerine
• Case Material: 304 Stainless Steel
• Thread Material: Brass
• Window: Instrument Glass
• Process Temperature: 60°C Max
• Weather Protection: IP 65

 Specification:

• Diameter: 40, 50, 63 & 80mm
• Ranges: from -1 bar (-30″Hg) vacuum to 70 bar (1000 psi) pressure
• Accuracy: ±1.6% or ±2.5% FSD
• Connection: Bottom or Rear – 1/8″, 1/4″ BSPT, BSP or NPT
• Mounting: Direct only
• Case Filling: N/A – Dry only
• Case Material: Steel case – Black finish
• Window: Plastic
• Thread Material: Brass
• Process Temperature: 60°C Max
• Weather Protection: IP 45

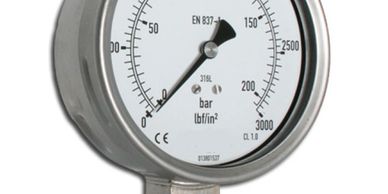

 Specification:

• Diameter: 40, 50, 63, 100, 160, 200 & 250mm
• Ranges: from -1 bar (-30″Hg) vacuum to 1400 bar (20000 psi) pressure
• Accuracy: ±1.0%, ±1.6% & ±2.5% FSD (subject to diameter)
• Connection: Bottom or Rear – 1/8″, 1/4″, 3/8″ & 1/2″ BSP, (BSPT or NPT 1000 bar max)
• Mounting Options: Direct
• Case Filling: Dry or Glycerine
• Case Material: 304 Stainless Steel
• Wetted Parts: 316L Stainless Steel
• Window: Safety Glass
• Process Temperature: 200°C Max (100°C with case filling)
• Weather Protection: IP 65

• Diameter:  63, 100, 160, 200 & 250mm
• Ranges: from -1 bar (-30″Hg) vacuum to 1400 bar (20000 psi) pressure
• Accuracy: ±1.0%, ±1.6% & ±2.5% FSD (subject to diameter)
• Connection: Bottom or Rear – 1/4″, 3/8″ & 1/2″ BSP, (BSPT or NPT 1000 bar max)
• Mounting Options: Direct
• Case Filling: Dry or Glycerine
• Case Material: 304 Stainless Steel
• Wetted Parts: 316L Stainless Steel
• Window: Safety Glass
• Process Temperature: 200°C Max (100°C with case filling)
• Weather Protection: IP 65

• Diameter: 63, 100, 160 & 200mm
• Ranges: from -600 mbar (-250″WG) vacuum to 600 mbar (250″WG) pressure
• Accuracy: ±1.6%, ±2.5% FSD
• Connection: Bottom or Lower Rear – 1/8″, 1/4″, 3/8″ & 1/2″ BSP or NPT
• Mounting Options: Direct
• Case Filling: N/A – Dry only
• Case Material: 304 Stainless Steel
• Thread Material: Brass
• Window: Instrument Glass
• Process Temperature: 60°C Max
• Weather Protection: IP 54
