Side mounting level switches

Features;
In our ELB 10 series, installation should be horizontal. Flange material is 316 Stainless Steel. Float material is 316 Stainless Steel.
Our ambient temperature is (-) 20°C ... (+) 80°C.
Max. pressure for ELB 10 is 16 bar and temperature is 150°C. Float test pressure is 25 bar.
In our ELB10x model, the entire housing is 304 Stainless Steel.
In our ELB 11 AND 12 series, max. pressure is 25bar and temperature is 250°C. Float test pressure is 40 bar.
Housing: Aluminum.

 Features;

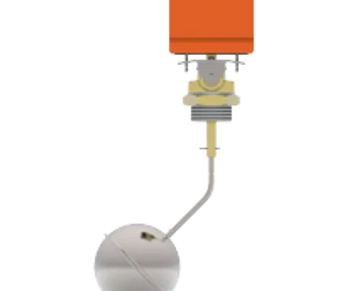

Horizontal mounting is recommended for our ELB 40 series. Union and nut materials are brass. Float material is 304 Stainless Steel.
Connection is R1" male thread. Max. pressure is 7 bar. Max. temperature is 160°C.
Our ambient temperature is (-)20°C…(+)80°C.
Housing: Aluminum.

  Features;
Horizontal mounting is recommended for our ELB 50 series. Flange material is 316 Stainless Steel. Float material is 316 Stainless Steel.
Our ambient temperature is (-)20°C…(+)80°C.
Max. pressure is 25 bar. Max. temperature is 250°C. Float test pressure is 40 bar.
Housing: Aluminum.

 Features;

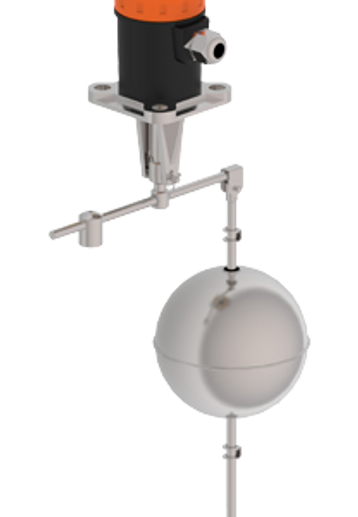

Horizontal mounting is recommended for our ELB 60 series. Flange material is 304 Stainless Steel. Float material is 316 Stainless Steel.
Our ambient temperature is (-)20°C…(+)80°C.
Max. pressure is 16 bar. Max. temperature is 150°C. Float test pressure is 25 bar.
Housing: Aluminium.

  Features;
Horizontal mounting is recommended for our ELB 70 series. Flange material is 316 Stainless Steel. Float material is 316 Stainless Steel.
Our ambient temperature is (-)20°C…(+)80°C.
Max. pressure is 16 bar. Max. temperature is 400°C. Float test pressure is 40 bar.
Housing: Aluminum.
